Description

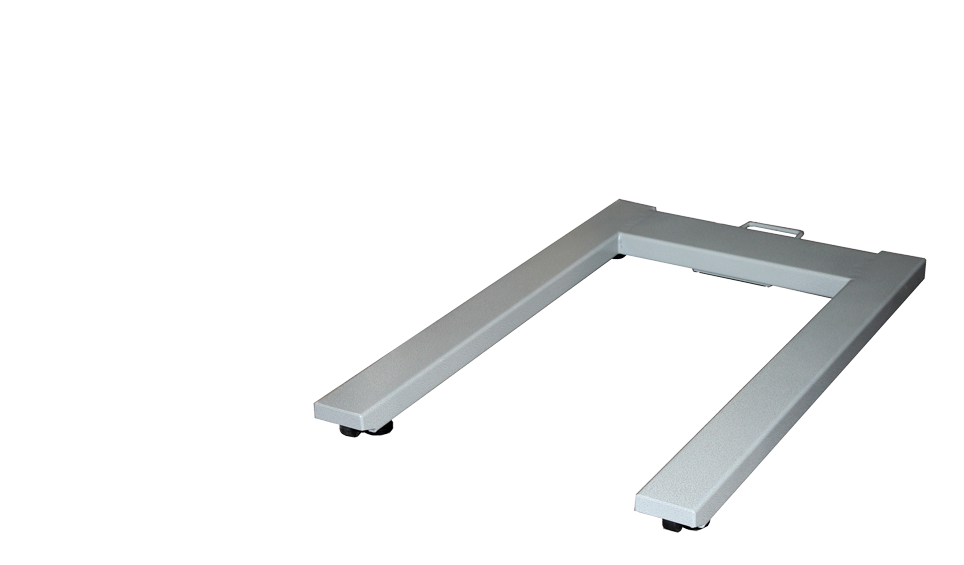

The PS is a pallet weigher: a U-shaped floor platform with four shear beam load cells built into the frame. It is sized for Euro pallets and covers capacities from 300 kg up to 3000 kg.
Low U-shaped frame
The frame is 80 mm high. A low profile means a pallet only has to be raised a short distance to set it down on the scale. Platform sizes start at 1250×850 mm; if your pallets or loads need a different footprint, mention this when you ask for a quote. The platform size guide helps you check the fit.
Load cells and capacities
Four integrated shear beam load cells carry the load. Capacities range from 300 kg up to 3000 kg.
| Item | PS Pallet Scale |
|---|---|
| Capacities | 300 kg up to 3000 kg |
| Platform size | From 1250×850 mm |
| Height | 80 mm |
| Load cells | 4 × shear beam, integrated |
Pick a capacity that covers your heaviest loaded pallet with some margin; capacity and readability explained shows how capacity affects the smallest weight step.
Indicator and options
A column for the indicator is available as an option. The PS can be combined with an indicator such as the WPL R10 weighing indicator. The option list also refers to a finish supplement for stainless steel versions; ask WPL about the stainless steel execution if your environment calls for it.
Calibration
Every scale can be supplied with an EURAMET cg-18 calibration certificate as an option. EURAMET cg-18 calibration explains what the certificate involves.
See all industrial scales or request a quote with your pallet size, heaviest load and indicator preference.
