Description

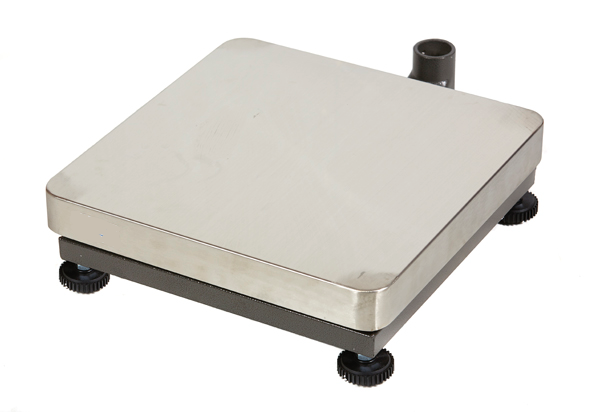

The Standard Platform Scale is a general-purpose platform for weighing goods at floor level. It pairs a painted alloy steel frame with a polished stainless steel cover plate and is offered in three square sizes, with capacities from 30 to 500 kg.
Construction
The frame is made of robust painted alloy steel, topped with a polished stainless steel cover plate. Weighing is done by an aluminium load cell with IP66 protection, and an overload limiter protects that load cell against loads beyond its range. Four adjustable feet let you level the platform when it stands on the floor or when it is installed recessed. IP ratings explained describes what the protection codes mean.
Sizes and capacities
| Item | Standard Platform Scale |
|---|---|
| Platform sizes | 400×400, 600×600, 800×800 mm |
| Capacities | 30, 60, 150, 300, 500 kg |
| Load cell | Aluminium, IP66, with overload limiter |
WPL confirms which capacity is supplied with which platform size when you request a quote. The platform size guide and capacity and readability explained help you narrow down the choice.
Indicator and column
A 45 cm steel column with column support carries the indicator above the platform. The scale can be combined with an indicator such as the WPL R10 weighing indicator. Other indicators and labelling stations are listed under industrial indicators and labelling.
Verification and calibration
A verified version (EU M marking) is available as an option. Every scale can be supplied with an EURAMET cg-18 calibration certificate as an option; EURAMET cg-18 calibration explains the procedure.
See all industrial scales or request a quote with the size, capacity and installation you have in mind.
