Description
The W Series is a four-load-cell floor scale for loads from 300 to 6000 kg. It is built as a standard W model and as a WI model finished in stainless steel, each in a version that stands on the floor or one that is built into a pit.
Construction and load cells

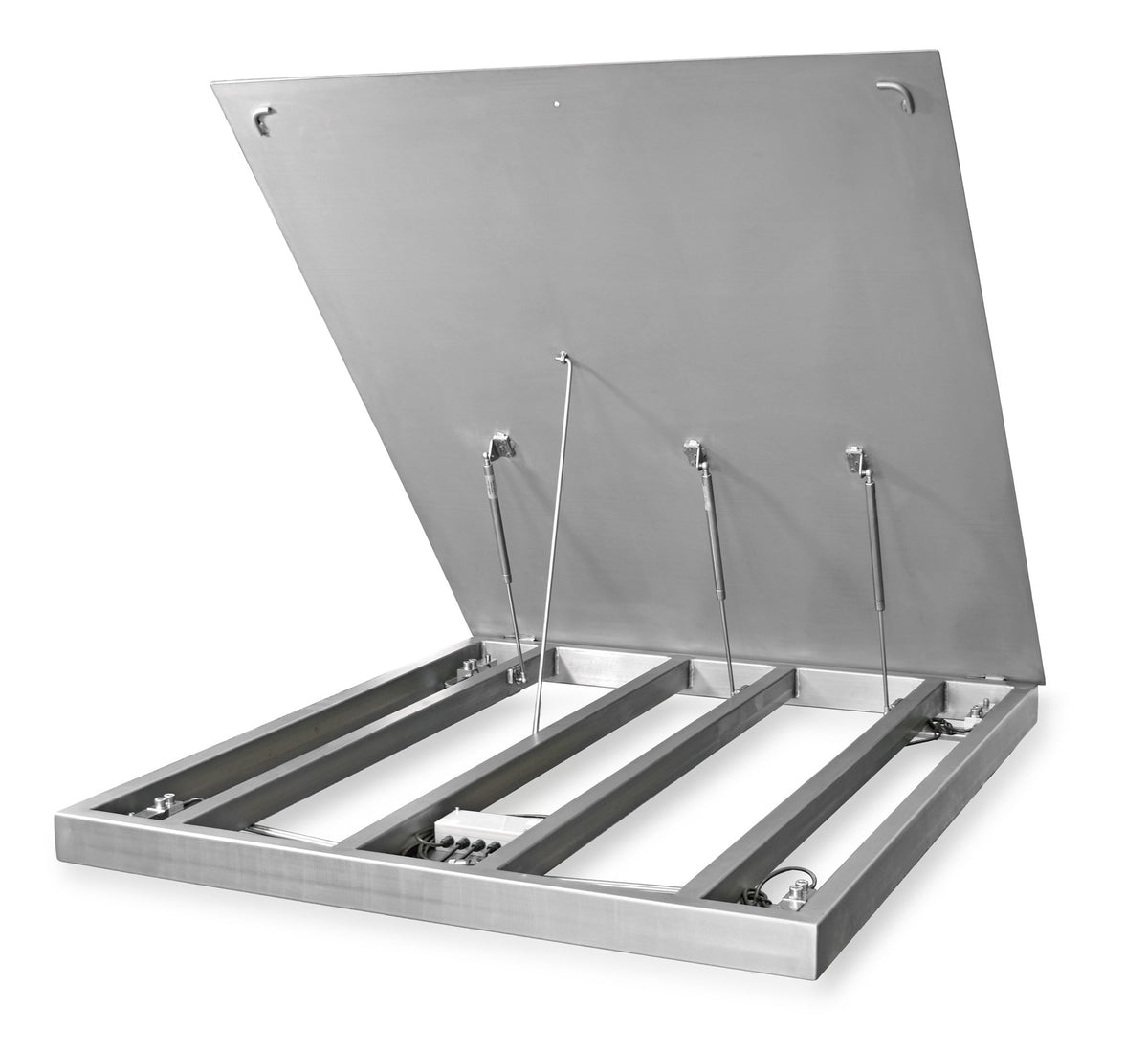

The load bridge rests on four load cells mounted with ball-and-socket joints, so the force on each cell always acts vertically. A shock absorber system protects the scale against shocks and overloads. The top plate can be removed to reach the load cells and junction box for installation, repair and cleaning.
- W model: four CS load cells and a junction box, both IP67. Options are a stainless steel plate and CSI stainless steel load cells with IP68 protection.
- WI model: AISI 304 stainless steel finish for corrosion protection in demanding environments, four laser-welded CSI stainless steel load cells and an IP68 junction box.
See IP ratings explained for the difference between IP67 and IP68.
Floor or pit installation
The floor-standing version is fully closed. The embedded version, built into a pit so that the platform sits level with the floor, is open at the back.
Sizes and capacities
| Item | W Series |
|---|---|
| Capacities | 300, 600, 1500, 3000, 6000 kg |
| Square sizes | 800×800, 1000×1000, 1250×1250, 1500×1500, 2000×2000 mm |
| Rectangular sizes | 1000×1250, 1250×1500, 1500×2000 mm |
Other dimensions and capacities are available on request. The platform size guide helps you match the platform to your loads.
Indicator and calibration
The W Series can be combined with an indicator such as the WPL R10 weighing indicator. Every scale can be supplied with an EURAMET cg-18 calibration certificate as an option; read EURAMET cg-18 calibration for details.
Compare other industrial scales or request a quote with the model, size, capacity and installation type you need.
